Make Noise Sto Oscilador Módulo Eurorack

Descripción

IMPORTWAVECL DISTRIBUIDOR OFICIAL DE NOISE ENGINEERING EN CHILE


PRODUCT DETAILS

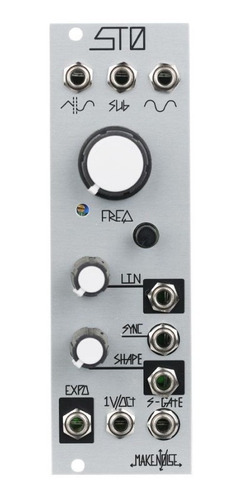

MAKE NOISE STO
The STO is Make Noise's classic VCO. It is similar to a single channel of the DPO, but with a few adjustments. It has three outputs, a dedicated Sine output, a square wave Suboctave output, and a waveshaped output, which morphs from a soft triangle to something in between a Triangle and Square wave. There are both Linear and Exponential FM inputs, as well as a Sync input. The Waveshaping circuit is also voltage controllable, providing timbral shifts without any filter. It tracks musically using the 1V/Oct input over 5 octaves. The Suboctave output is kept separate when the Sync input is used, so the suboctave has its own Sync input, S-Gate. For those wanting the sound of Make Noise without the price of a DPO, the STO is the perfect solution.

STO FEATURES
Compact Voltage Controlled Oscillator
Triangle Core with outputs for SINE, SUB and Variable SHAPE
Unique Variable SHAPE circuit ripples Even and Odd harmonics for subtle timbral shifts
Linear FM input with Depth control
EXPOnential input for deep FM, SYNC sweeps or Transposition of sequences
SUB-Oscillator yields max bass
S-Gate input for gating or sync of SUB-Osc. independent of other outputs
Hard SYNC circuit which combined with Linear FM and Variable SHAPE yields harmonically rich sounds
Pairs well with the MMG or Optomix

Garantía del vendedor: 3 meses
