Mini Usb Host Arduino Max3421 Adk Android Raspberry Pic

Descripción

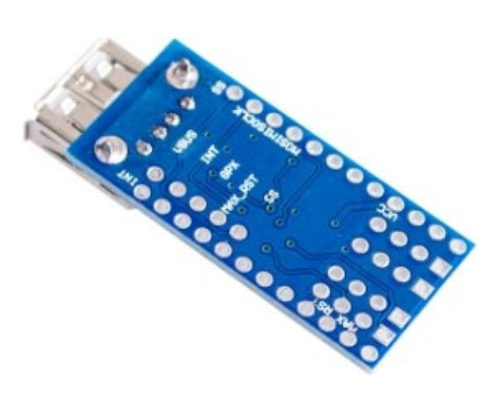

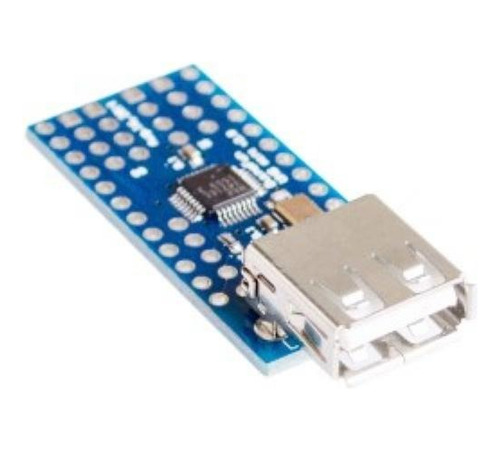

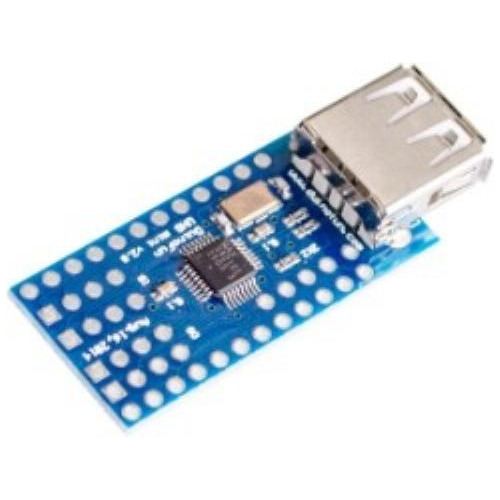

Mini USB Host Shield 2.0 for Arduino ADK SLR development tool

Product description
USB host mini board is very convenient to communicate with a USB slave device, such as USB keyboard, mouse, USB disk
Camera, Android system mobile phone, etc. with USB host shield and arduno, you can also implement Google ADK
Please don't buy those without development function, and do not provide technical support for the time being
Only 3.3v/8m/328 arduno promini and 3.3V ftdi are supported


Product characteristics
Mini USB host enables arduno (pro mini version only) to realize USB host function, which can be used with other USB devices
Communication. USB hub function is also supported. Provide compiled APK installation package and ADK source file, compatible with the following accessories of arduno
:Arduno Uno 328 Arduno Diecimila/Duemilanove 328 Arduno Mega 2560
Arduno Mega 1280. Supports Google Android ADK function and Android mobile phone type;
G1, Nexus One nexus s.motorola droid x,
Tablet needs to be upgraded to Android 3.1)


Specification parameter
Product size: 38mm * 18mm
Net weight: 4.5g
Technical parameters:
Voltage: dc3.3v power supply

Garantía del vendedor: 3 meses
