Sg90 9g Micro Servo Motor: Mini Servos Para Rc Robot/coche/a

Descripción

Bienvenido(a),
Traemos lo que quieras, en menos de 25 días hábiles.

TERMINOS Y CONDICIONES
------------------------------------------
- Fotos referenciales del producto, consulte no mas
- Despachamos a todo Chile con Starken o Mercado Envios
- Productos importados de Estados Unidos, es probable que los productos electronicos trabajen en 110V y NO en 220V, podria usar un transformador, para mas informacion primero nos puedes preguntar todas las inquietudes que tengas.

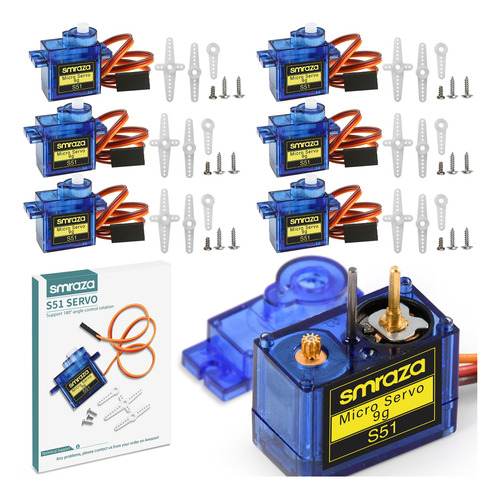

SG90 9g Micro Servo Motor: Mini Servos para RC Robot/Coche/Avión Micro Servos Metal Gear con Cable para Arduino Kit (6pc)

SG90 9g Micro Servo Motor : Mini Servos for RC Robot/Car/Plane Micro Servos Metal Gear with Cable for Arduino Kit (6pc)

COLOR: UNICO

MODELO: UNICO

MARCA: Smraza

TALLA: 6



-SG90 9G micro servo motor for remote control helicopters, micro robot, robot arm and boats. Fit for ALL kinds of R/C Toys and also make electronics DIY compatible with Arduino, Raspberry Pi


-Interface Type: Compatible with JR & FUTABA interface. Running Speed (at no load): 0.09 ± 0.01 sec/60°(4.8V ) 0.08 ± 0.01 sec/60°(6V). Running angle: 180 degree


-Stall Torque (4.8V): 17.5oz /in (1kg/cm). Dead band setting: 5 ms


-Amplifier Type: Analog controller. Operating Voltage: 4.8V?6.0V


-Please Note: The starting current of the motor should be greater than 1A. Comes with 1 year warranty and lifetime technical Support




About Smraza:
We are a leading manufacturer of electronic components for Arduino and Raspberry Pi. We have a professional engineering team dedicated to providing tutorials and support to help you get started.
If you have any technical questions, please feel free to contact our support staff via .

Smraza 10 Pcs 9G Micro Servo Motor for RC Robot Arm Helicopter Airplane Car Boat Remote Controls and Arduino Experiments

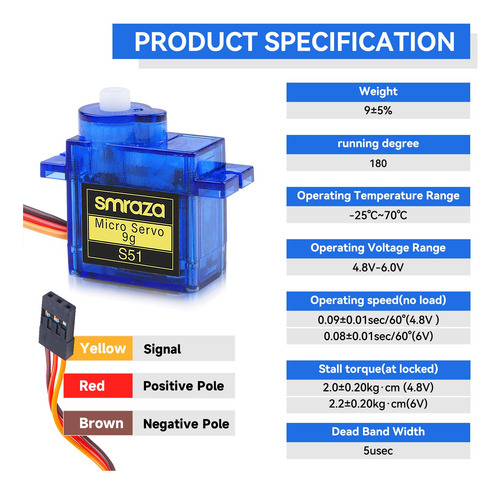

Product Specification

1. Apply Environmental Condition:
Operating Temperature Range: -25??70?
Operating Voltage Range: 4.8V?6.0V

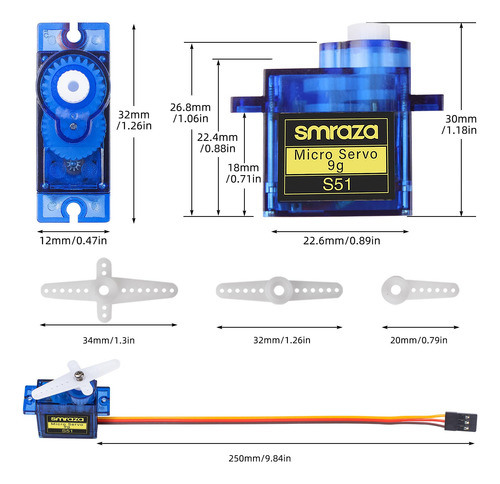

2. Dimensions?
23mm*12.2mm*29mm(L*W*H)

3. Electrical Specification (Function of the Performance): Operating speed (at no load): 0.09±0.01 sec/60°(4.8V ) 0.08±0.01 sec/60°(6V)
Running current (at no load): 400±30mA (4.8V ) 500±30mA(6V)
Stall torque (at locked): 2.0±0.20kg·cm (4.8V ) 2.2±0.20kg·cm(6V)
Stall current (at locked): 1300±40mA (4.8V ) 1600±50mA(6v)
Idle current (at stopped): 6±1mA (4.8V ) 6±1mA(6v)
Running life(at no load): >350000 Turns(4.8V ) >320000 Turns(4.8V )

4. Mechanical Specification?
Physical Limit angle:200°± 1°
Weight:9 ± 1 g
Connector wire gauge:?28 PVC
Connector wire length:250 ± 5 mm
Spline:21T
Horn type:Cross,star and bar-type
Excessive play:?0.5°

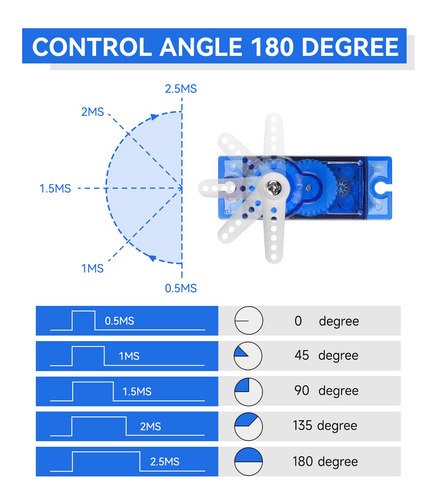

5. Control Specification?
Control system:Change the pulse width
Amplifier type:Analog controller
Operating travel: 180°±10° (500?2500 ?sec)
Left&Right travelling Angle deviation:? 6°
Centering deviation:? 1°
Neutral position:1500 ?sec
Dead band width:5 ?sec
Rotating direction:Counter Clockwise (500?2500?sec)
Pulse width range:500?2500 ?sec
Maximum travel:About 180° (500?2500 ?sec) B0C37CNZC8

Garantía del vendedor: 90 días
