Switch Huawei S2403tp-ea 24 Port 10/100 + 2 Giga Base-x (Reacondicionado)

Descripción

Marca : Huawei
Modelo : S2403TP-EA 24 Port 10/100 + 2 10/100/1000Base-T or 100/1000Base-X
N/Parte : 0235A337

- Port
24*10/100TX+2*10/100/1000BASE-TX or 100/1000BASE-X SFP
- Optional module
10/100/1000BASE-T[100m]
100BASE-SX[2km]
100BASE-LX[15km]
100BASE-LH40[40km]
1000BASE-SX[0.5km]
1000BASE-LX[10km]
1000BASE-LH40[40km]
- Layer-2 line speed
Packet forwarding rate: 6.55 Mpps
Port capacity: 8.8 Gbps
Bus bandwidth: 19.2 Gbps
- MAC address list
Supports 8K MAC address list.
Supports adding or deleting the MAC address list manually.
Supports configurable aging time of MAC addresses.
Supports closing study MAC by port/aggregation groups.
Supports port/aggregation groups for restricting the number of MAC addresses.
Supports black hole MAC.
- VLAN features
Supports IEEE 802.1Q (VLAN). The integrated equipment can support up to 4000 VLANs.
Supports the VLAN based on port.
Supports multicast VLAN.
Supports QinQ.
- Port features
Supports port rate auto-negotiation.
Supports IEEE802.3x flow control (full duplex) or back-pressure based flow control (half duplex).
Supports the network cable type MDI/MIDX of Ethernet ports.
Supports copying basic configuration between ports.
Supports port outloop and inloop test.
Supports configurable interval of port information statistics.
- Port security
Supports unknown unicast suppression.
Supports multicast storm suppression.
Supports broadcast storm suppression.
- Port convergence
Supports IEEE 8.2.3ad (link aggregation control protocol (LACP)).
Supports load sharing among ports of the aggregation group.
- Port mirroring
Supports 1:1 or n:1 mirroring.
- Port rate control
Supports rate control based on ports. The bidirectional rate is 64 kbps.
- STP/RSTP/ MSTP
Supports STP/RSTP/MSTP.
Supports STP protection.
- Multicast
Supports IGMP v1/v2&v3 Snooping.
Supports controllable multicast.
Support MVLAN.
- QoS/ACL
Supports traffic classification based on source MAC address, destination MAC address, source IP address, destination IP address, layer-4 port, protocol type, VLAN, Ethernet frame protocol and CoS.
Supports marking priority based on traffic, modifying the VLAN ID of messages, and redirecting messages to the port or next hop of IP address.
Supports four port priority queues.
Supports WRR, SP, and WRR+SP queue scheduling.
- Loading and upgrade
Supports FTP loading and upgrade.
Supports TFTP loading and upgrade.
- Management
Supports configuration of CLI.
Supports Telnet configuration.
Supports SNMPV1/V2c/V3.
Supports RMON.
Supports cluster management HGMP V2.
Supports SSH.
- Maintenance
Supports HWPING.
Supports Telnet maintenance.
Supports port loopback detection.
Supports RSPAN remote port mirroring.
Supports VCT.
Supports device link detection protocol (DLDP).
- Dimensions (W x D x H) mm
440*160*43.6
- Weight
3kg

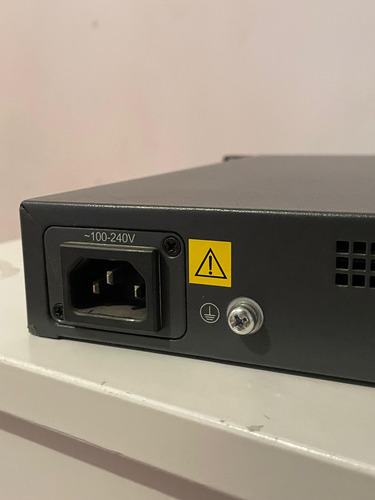

- Power supply
AC:
Rated voltage range: 100-240V AC; 50/60 Hz
Maximum voltage range: 90-264V AC; 50/60 Hz
DC: (except S2016TP-PWR-EA)
Rated voltage range: -52 to -56 V DC
Maximum voltage range: -36 to -72 V DC
- Power consumption
20W/395W (24 ports fully configured)
- Ambient temperature
0°C - 45°C
- Relative humidity (not condensation)
10% - 90%

GARANTÍA 3 MESES

Garantía del vendedor: 3 meses

Garantía del vendedor: 90 días
