Placa Madre Asus Prime H610m-k D4 Intel S1700 Ddr4 Micro Atx

Descripción

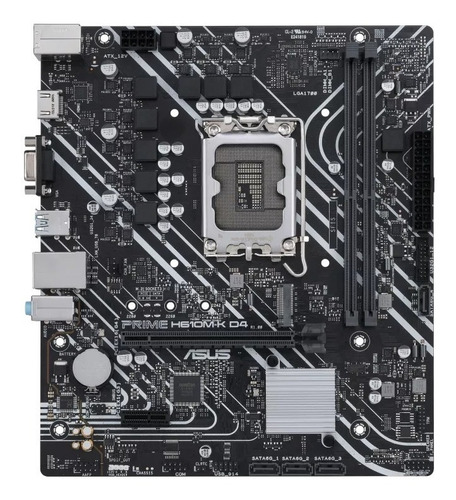

The ASUS PRIME H610M-K D4 is a microATX (mATX) motherboard designed to support 13th Gen Intel Core processors, 12th Gen Intel Core processors, Pentium Gold, and Celeron processors.

CPU Support:

Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset:

Intel H610 Chipset
Memory:

2 x DIMM slots, Max. 64GB DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Graphics:

1 x D-Sub port
1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Expansion Slots:

1 x PCIe 4.0 x16 slot (for Intel 13th & 12th Gen Processors)
1 x PCIe 3.0 x1 slot (Intel H610 Chipset)
Storage:

1 x M.2 slot (Key M), supports PCIe 3.0 x4 & SATA modes
4 x SATA 6Gb/s ports
M.2 slot shares bandwidth with SATA6G_4 port
Ethernet:

1 x Realtek 1Gb Ethernet
USB:

Rear USB: 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0 ports
Front USB: 1 x USB 3.2 Gen 1 header (supports additional 2 USB 3.2 Gen 1 ports), 1 x USB 2.0 header (supports additional 2 USB 2.0 ports)
Audio:

Realtek 7.1 Surround Sound HD Audio CODEC
Supports up to 24-Bit/192 kHz playback
Back Panel I/O Ports:

2 x USB 3.2 Gen 1 ports, 4 x USB 2.0 ports
1 x D-Sub port, 1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors:

Various headers for fans, power, storage, USB, RGB, etc.
Special Features:

ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O)
ASUS Q-Design (Q-DIMM, Q-Slot)
ASUS Thermal Solution (Aluminum heatsink design)
ASUS Lighting Control (RGB header)
Software Features:

ASUS Exclusive Software (Armoury Crate, AI Suite 3, TurboV EVO, EPU, DIGI+ VRM, Fan Xpert, ASUS CPU-Z, Norton Anti-virus software, WinRAR)
UEFI BIOS with ASUS EZ DIY features (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode)
BIOS:

128 Mb Flash ROM, UEFI AMI BIOS
Manageability:

WOL (Wake On LAN) by PME (Power Management Event), PXE (Preboot Execution Environment)

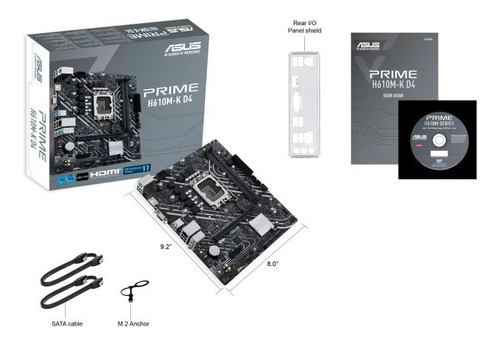

Accessories:

Cables: 2 x SATA 6Gb/s cables

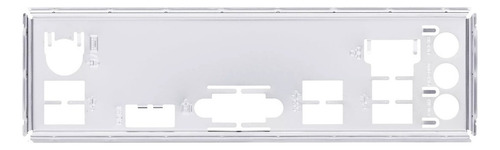

Miscellaneous: 1 x I/O Shield, 1 x M.2 ANCHOR
Installation Media: 1 x Support DVD
Documentation: 1 x User Guide
Operating System Support:

Windows 11 64-bit, Windows 10 64-bit
Form Factor:

mATX Form Factor (9.2 inch x 8.0 inch or 23.4 cm x 20.3 cm)

Garantía del vendedor: 6 meses
