Hosyond 10 Pack Servo Motors SG90 9G Micro Servo para RC Robot Helicóptero Avión Barco Control Remoto Juguetes, Servo para Arduino Project, Azul

Hosyond 10 Pack Servo Motors SG90 9G Micro Servo for RC Robot Helicopter Airplane Boat Remote Control Toys, Servo for Arduino Project, Blue

COLOR: Blue

MODELO: C058-10

MARCA: Hosyond

TALLA: SG90 x 10

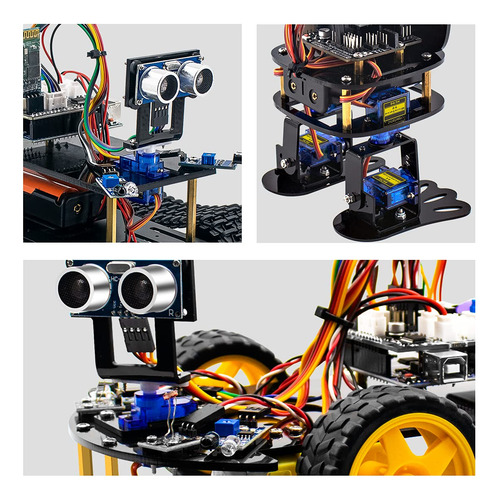

-[Applications] SG90 9G servo motor, compatible with RC helicopters, micro robots, robot arm and ships etc. Support various remote control toys and Arduino project


-[Interface type] This SG90 servo is compatible with JR & Futaba interface


-[Operating speed] 0.12 second/ 60degree ( 4.8V no load), 0.1 second / 60degree ( 6.0V no load), Max rotation angle:180 degrees


-[Stalling torque] 17.5oz/in (1kg/cm); Dead zone width: 7 microseconds; Amplifier type: analog controller; Working voltage: 4.8V?6.0V


-[Reminder] The starting current of the analog servo motor must be greater than 1A. SG90 Servo is an analog servo and needs to continuously provide PMW signal to work normally

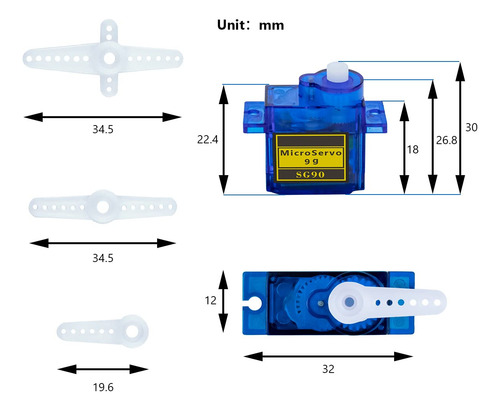

Mechanical Specification:
?Limit angle: 200°± 1°
?Weight: 9 ± 1 g
?Connector wire gauge: ?28 PVC
?Connector wire length: 250 ± 5 mm
?Spline: 21T

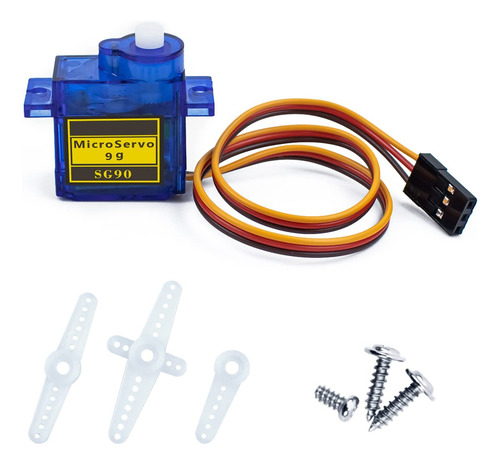

?Horn type: Cross,star and bar-type
?Excessive play: ?0.5°

Control Specification:
?Control system: Change the pulse width
?Amplifier type: Analog controller
?Operating trave: l120°±10° (900?2100 ?sec)
?Left&Right travelling Angle deviation: ? 6°
?Centering deviation: ? 1°
?Neutral position: 1500 ?sec
?Dead band width: 7 ?sec
?Rotating direction: Counter Clockwise (900?2100?sec)
?Pulse width range: 900?2100 ?sec

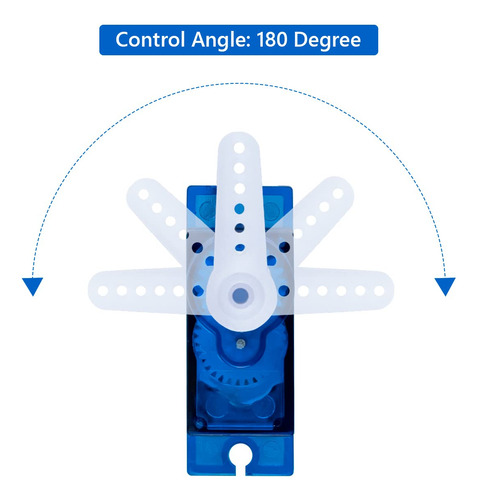

?Maximum travel: About 120° (900?2100 ?sec)

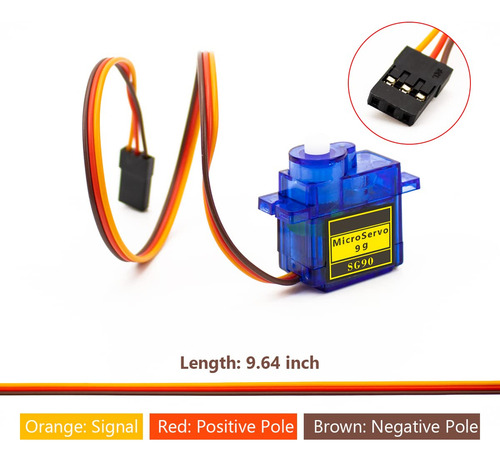

Wire Layout:

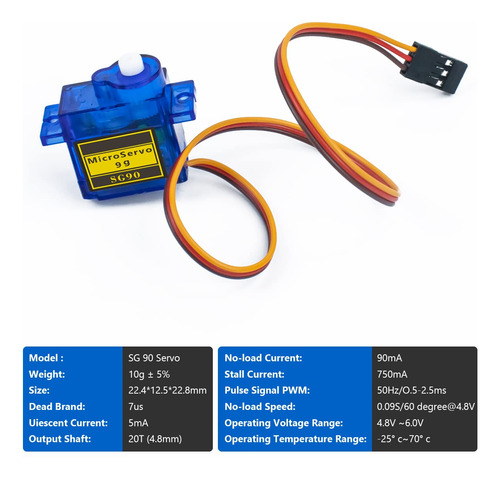

?Electrical Specification (Function of the Performance): Operating
?speed (at no load):
0.09±0.01 sec/60°(4.8V ) 0.08±0.01 sec/60°(6V)
?Running current (at no load): 400±30mA (4.8V ) 500±30mA(6V)
?Stall torque (at locked): 2.0±0.20kg·cm (4.8V ) 2.2±0.20kg·cm(6V)
?Stall current (at locked): 1300±40mA (4.8V ) 1600±50mA(6v)
?Idle current (at stopped): 6±1mA (4.8V ) 6±1mA(6v)
?Running life(at no load): >350000 Turns(4.8V ) >320000 Turns(4.8V )

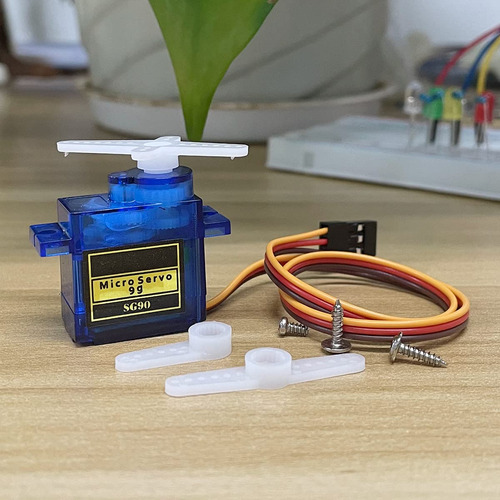

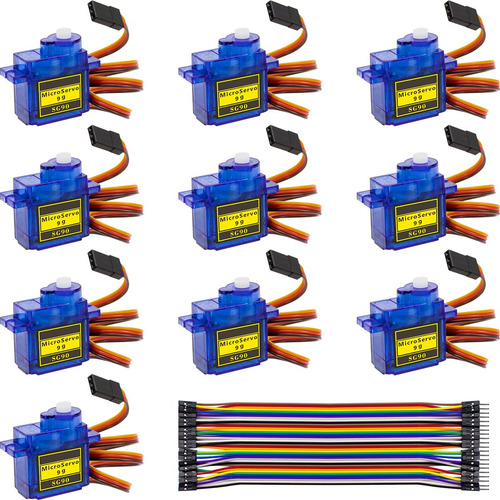

Package include:
10 x SG90 9G servo motor
1 x 20cm female-male jumper wire B09GFN98X9
