Uxcell Pp Interruptor De Flotador Para Bomba De Agua Tanque

Descripción

Bienvenido(a),
Traemos lo que quieras, en menos de 25 días hábiles.

TÉRMINOS Y CONDICIONES
------------------------------------------
- Fotos referenciales del producto, consulte no mas
- Despachamos a todo Chile con Starken o Mercado Envios
- Productos importados de Estados Unidos, es probable que los productos electronicos trabajen en 110V y NO en 220V, podria usar un transformador, para mas informacion primero nos puedes preguntar todas las inquietudes que tengas.

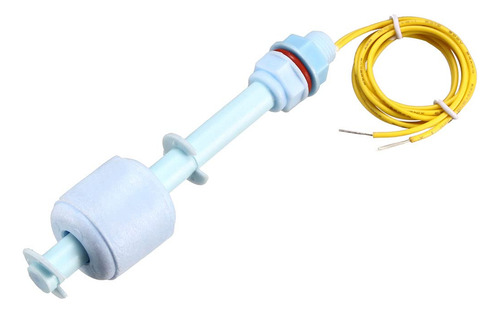

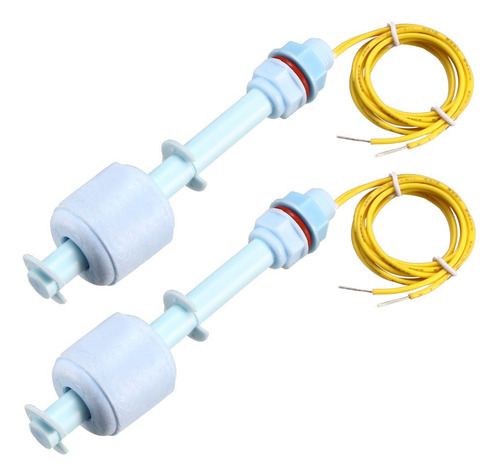

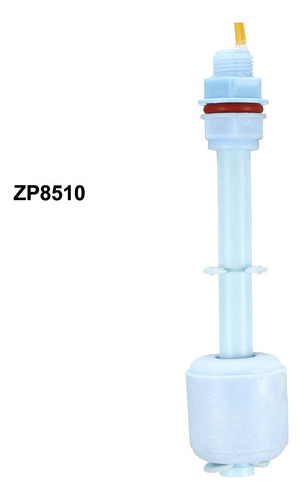

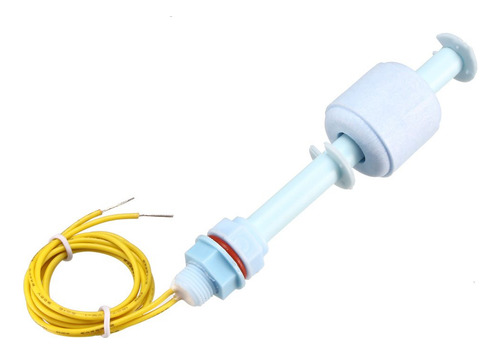

uxcell PP interruptor de flotador para bomba de agua tanque sensor de nivel de agua líquida M10 3.937 in longitud 16 pulgadas cable 2 piezas

uxcell PP Float Switch for Water Pump Tank Liquid Water Level Sensor M10 100mm Length 16-inch Cable 2pcs

COLOR: UNICO
MODELO: a18050900ux0041
MARCA: uxcell
TALLA: 100mm

-Total Length: 100mm / 3.94"; Float Ball Size(Approx): 24 x 24mm / 0.94" x 0.94" (L*D); Thread Dia(Approx): 10mm / 0.39"; Cable Length: 40cm / 15.7"

-Max Switching Voltage/Current: 110V DC/0.5A

-HOW TO WORK - By using a magnet to sense the reed switch. Float switch is mainly composed of a magnetic spring switch and a float. There are magnetic materials in the float. When the float moves up and down with the water level, it will touch the magnetic spring switch to detect the liquid position

-WIDELY APPLICATION - Float switch can be used for water heating equipment such as water dispenser, water heater, humidifier, etc. It also can be used for water tower, drainage pool, water tank, culture pond, etc

-PLEASE NOTE - Because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here.



:Product Name: Float SwitchMax Contact: Rating 10WMax Switching Voltage: 110V DCMax Switching Current: 0.5AMax Breakdown Voltage: 220V DCMax Carry Current: 1.0AMax Contact Resistance: 100mohmTemperature Rating: -10 ~ +60 C / 85 CFloat Ball Material: PPFloat Body Material: PPFloat Ball Size(Approx): 24 x 23.7mm(L*D)Thread Dia(Approx):M10Body Total Length: 100mmCable Length: 40cmColor: Blue;YellowNet Weight: 37gPackage Content :2pcs x Float SwitchDescription:A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.It can be easily converted from normally open to normally close by inverting the float.Note:because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.Feature:This float switch is a simple structure,easy installation liquid level controller.It does not have a complex circuit,will not be disturbed,as long as the material selection,liquid,pressure or temperture can be used in any environment.Light weight and simple working principle,high reliability.The float level switch is widely used in electronic,electrical,chemical,water treatment,drainage and other walks of life level control and alarm. B07DYWVMVQ

Garantía del vendedor: 90 días
