Controlador Temperatura Con Relay W1209, -50°-110°c, Arduino

Descripción

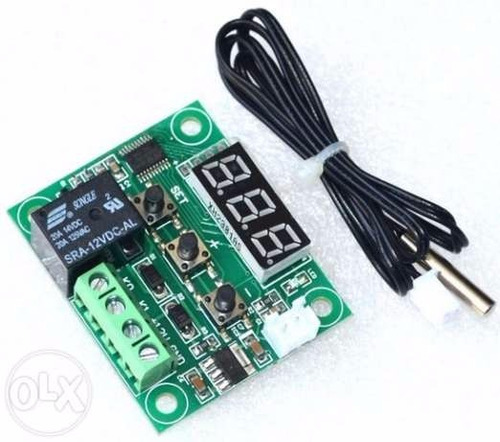

Controlador de Temperatura con Relay W1209, -50°-110°C

Specifications:
-
Technical parameters
Temperature control range: -50 ~ 110 ° C
Resolution: -9.9 to 99.9 is 0.1° C , 1 ° C temperature ranges other
Measurement Accuracy: 0.1 ° C
Control accuracy: 0.1 ° C
Hysteresis accuracy: 0.1 ° C
Refresh rate: 0.5 S
Input Power: DC12V
Measuring inputs: NTC (10K 0.5%) Waterproof sensor 0.5M
Output: 1 Channel relay output, capacity = 10A
Environmental requirements: -10 ~ 60 ¿ Humidity 20% -85%
Size: 48 (L) * 40 (W) * 14 (D) mm
Power consumption:Static current:<=35MA, Attract current:<=65MA


Packing including:
1x W1209 -50~110¿ electronic digital thermostat

Digital thermostat manual W1209
1¿the technical parameters
Control range: -50 ¿ -110 ¿
Resolution: -9.9-99.9 when 0.1 ¿, other temperature ranges 1 ¿
Temperature measurement accuracy: 0.1 ¿
Control accuracy: 0.1 ¿
Backlash accuracy: 0.1 ¿
Refresh rate: 0.5S
High temperature protection :0-110 ¿
Input Power: DC12V
Measuring inputs: NTC (10K 0.5%) waterproof sensor
Output: one 10A relay
Environmental requirements: -10 ¿ -60 ¿ Humidity 20% -85%
Size: 48 * 40mm
Power consumption: Static current: = 35MA pull current: = 65MA
2¿the using method
Connect the power supply and the load, the controller can be powered. the test temperature is displayed, press the SET button one time, the temperature on the screen flashes , press + - to set the desired temperature, after setting, press SET to confirm return, then the controller automatically executes the relay on and off as your set!
The outputs of the thermostat is 10A, to meet a variety of high-power loads, make sure the line is correct.
3¿the lights, LED Status Description
Indicators: when Off indicates the relay off, light on Steady indicates relay is closed.
Digital Tube: Showing LL indicates sensor open; Showing HH indicates it is beyond the measurement range, the thermostat will be forced to disconnect relay; Showing --- indicates high temperature protection.
4¿Parameters Description
Press SET 5 seconds to enter the main menu settings, press the + - switch P0 ... P8, or press SET button long or without motion for 10 seconds, the controller automatically confirmed to return.
