Sensor Corriente Y Voltaje Dc Max471 Arduino, Pic, Raspberry

Descripción

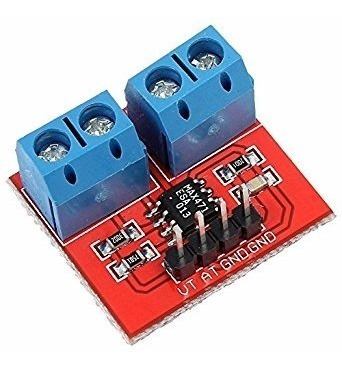

Modulo Sensor Corriente MAX471 de 0 a 3A
Product features
Equipped with with MAX471 current sensor amplifier chip enable the module to use the the detected power supply as the working voltage, no extra power supply needed
The voltage testing is based on the principle of resistive voltage divider design, can make the screw terminal connector input voltage to 5 times smaller
Current Sensor Range:0-3A, Accuracy:2%, Current voltage conversion ratio: 1V/A
Voltage Sensor Range; 3-25V(Arduino working voltage is 5V), 3-16.5V(Arduion working voltage is 3.3V)
Ship out by e-packet with tracking information and 7-17 days delivery time usually
Product description
This voltage and current sensor module is euipped with MAX471 current sensor amplifier chip enable the module to use the the detected power supply as the working voltage, no extra power supply needed. The voltage testing is based on the principle of resistive voltage divider design, can make the screw terminal connector input voltage to 5 times smaller. Arduino analog input voltages up to 5 v, the voltage detection module input voltage not greater than 5Vx5=25V (if using 3.3V systems, input voltage not greater than 3.3Vx5=16.5V), 4 pins header pinout easy to connect with the Arduino MCU.
