Receptor Relé 1 Canal Control Remoto Learning Code 1527

Descripción

Relé 1 Canal con Control Remoto Learning Code Chipset 1527 (PT1527, EV1527)

Características Relé:
Voltaje de Entrada : 85 a 250Vac
Corriente Standby: <5mA
Radiofrecuencia: 433 Mhz (LPD)
Modo de Funcionamiento RF: Superheterodyne
Sensibilidad de Recepción:> 97dbm
Distancia de Transmisión: 100 m (espacio abierto)
Modo de Decodificación: MCU software decoding
Soporte Tipo: Learning code 1527 Code
Modo de funcionamiento: Momentary, Toggle, Latching, Time Delay (Ver Más Abajo, en Inglés)

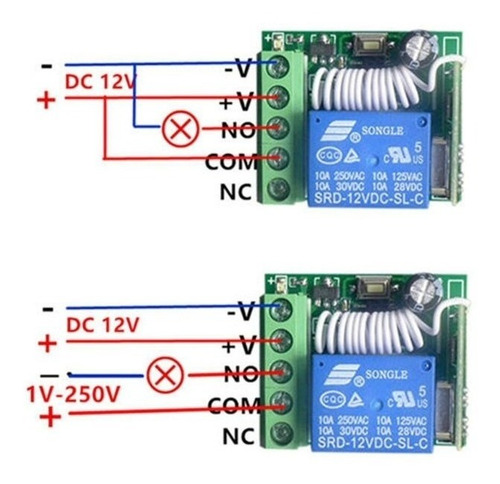

Conectores de Salida: NO, NC, COM
Dimensiones: 35x30x18mm

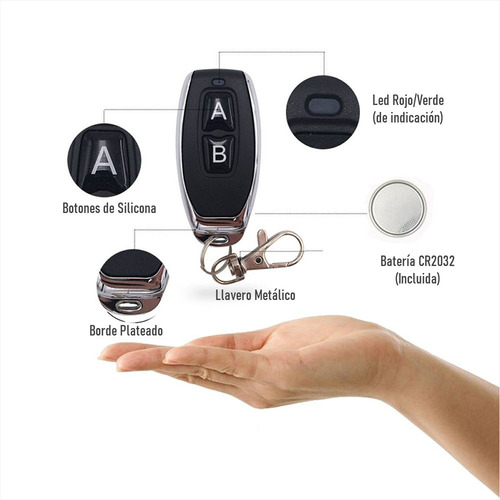

Características Control Remoto:
Frecuencia RF: 433.92 MHz
Chipset: 1527 Learning Code
Voltaje de Trabajo : 12Vdc
Corriente de Trabajo: 12mA
Potencia de transmisión: 10mW
Distancia de funcionamiento : 50m (Sitio Abierto)
Velocidad de transmisión: 50 ~ 60 kHz
Desviación de frecuencia: ±0. 2 MHz
Peso : 25g
Tamaño : 6.5 x 3.2 x 1.5mm

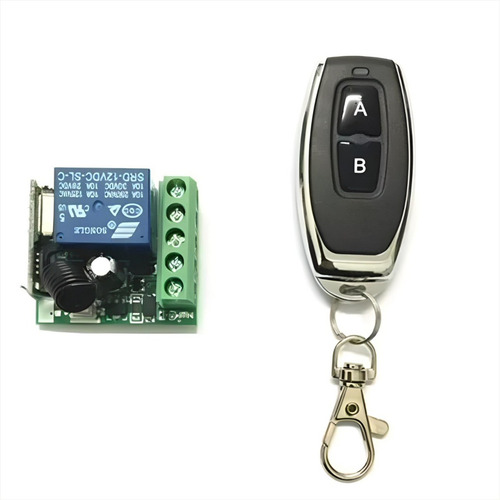

¿Qué se Entrega?

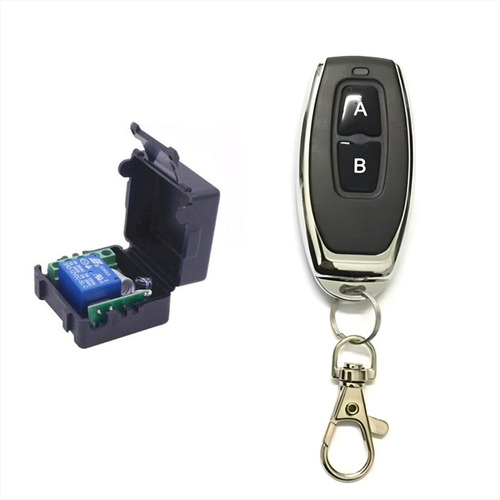

1 x Modulo Receptor KR2201-4, con Carcasa.
1 x Control Remoto Learning Code "1527"

***CONFIGURACIÒN***
About Working mode:
- Momentary: Push the remote button, the relay connects, release the remote button, the relay dis-connects.
- Toggle: Push once the remote button, the relay connects, push twice the remote button, the relay dis-connects .
- Latching: Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.
- Time delay mode: Push the remote control button, the relay connects, from when release the remote button, after 5s or 10s or 15s, the relay disconnect automatically.

Clearing the code:
- Push the learning button on the receivers for 8 times, the codes will be cleaned.
- After clearing the code, all the remote control cannot work any more.

Learning the code: ( Momentary )

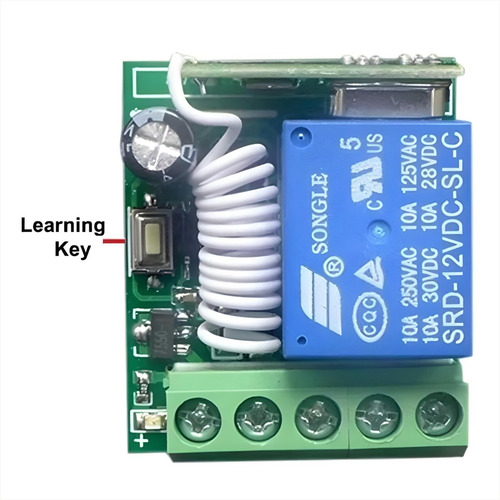

- Push the learning key on the receiver once time, it comes into momentary setting mode.
- Wait for a moment, the LED will be off , it comes into learning state.
- Push the remote button, LED indicator on the receiver board will flash then come off.
- After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the code: ( Toggle )
- Push the learning key on the receiver twice time, it comes into toggle setting mode.
- Wait for a moment , the LED will be off, it comes into learning state.
- Push the remote button, LED indicator on the receiver board will flash then come off.
- After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the code:( Latching )
Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learnt is for "ON", the second time learnt for "OFF".
For example: button A = ON , button B = OFF
- Push the learning key on the receiver triple time, it comes into latching mode .
- Wait for a moment, the LED indicator on the receiver board will flash then come off.
- Push the remote button A.
LED flash for 5 times.
- Push the remote button B.
Led flash for 5 times.
- After 3 seconds, the LED indicator will be on again, learning successfully.
A = ON, B = OFF.

Learning the code: ( Time delay mode )
- Push the learning key on the receiver forth time, the time dealy for 5 seconds.
- Push the learning key on the receiver fifth time, the time delay for 10 seconds.
- Push the learning key on the receiver sixth time, the time delay for 15 seconds.
The LED indicator will be off.
- Push the remote button , LED flashes and off .
- After 3 seconds, the LED indicator will be on again, learning successfully.
NOTE: The system can store for 50 pcs of remotes, if the remote get more than 50pcs, the initial remote control will be lost.
