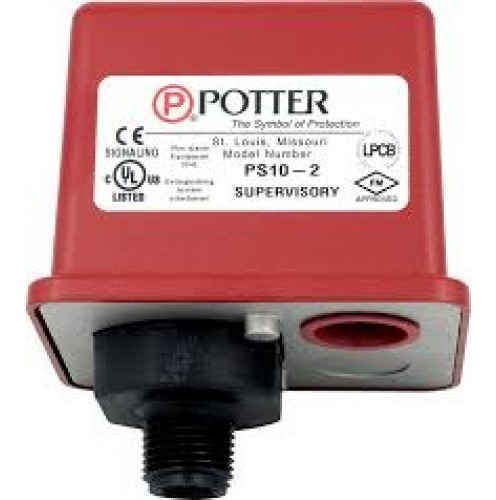

Switch Presión Rango 4-20 Psi Potter Ps10-2

Descripción

• Ajuste de interruptor independiente en dos modelos de interruptor, sin herramientas necesario
• Dos entradas para cables / conductos de 1/2 ”
• Cámaras de cableado aisladas separadas
• Conexión de presión no corrosiva
• Versión VdS disponible
• Recinto no conductor
Conduit Entrances Two knockouts for 1/2” conduit provided. Individual switch
compartments and ground screw suitable for dissimilar voltages
Contact Ratings
SPDT (Form C)
10.1 Amps at 125/250VAC, 2.0 Amps at 30VDC
One SPDT in PS10-1, Two SPDT in PS10-2
Cover Tamper Cover incorporates tamper resistant fastener that requires a special
key for removal. One key is supplied with each device.
Differential 2 psi (0,13 bar) typical
Dimensions 3.78”(9,6cm)Wx3.20”(8,1cm)Dx4.22”(10,7cm)H
Enclosure
Cover: Weather/UV/Flame Resistant High Impact Composite
Base: Die Cast
All parts have corrosion resistant finishes
Environmental
Limitations
-40º F to 140ºF (-40ºC to 60ºC)
NEMA 4/IP66 Rated Enclosure indoor or outdoor when used with
NEMA 4 conduit fittings
Factory Adjustment 4 - 8 psi (0,27 - 0,55 bar)
Maximum System
Pressure 300 psi (20,68 bar)
Pressure Connection Nylon 1/2” NPT male
Pressure Range 4-15 psi (0,27 - 1,03 bar)
Service Use NFPA 13, 13D, 13R, 72
