Placa Madre Gigabyte H410m S2h Ddr4 M.2 Intel Lga 1200 10ma

Descripción

:::::::::::::::::::::: COMPUELITE :::::::::::::::::::::::
Compre con expertos, compre mejor!!!

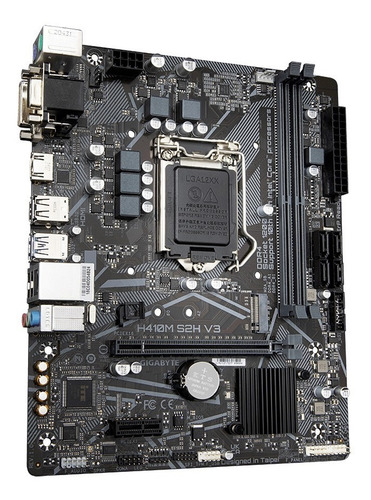

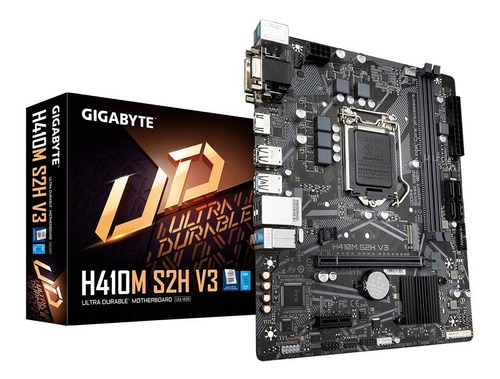

Placa Madre Gigabyte H410M S2H V3, 2xDDR4, 6xUSB, 1xM.2, VGA-DVI-HDMI
Modelo: H410M S2H V3 (rev 1.0)

Intel Ultra Durable Motherboard with GIGABYTE Gaming GbE LAN, PCIe Gen3 x4 M.2, HDMI / DVI-D/ D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 5

Admite procesadores Intel Core de décima generación
DDR4 sin búfer no ECC de doble canal, 2 DIMM
Audio HD de 8 canales con condensadores de audio de alta calidad
Conector NVMe PCIe Gen3 x4 2280 M.2
GIGABYTE Gaming GbE LAN con gestión de ancho de banda
Puertos HDMI / DVI-D / D-Sub para múltiples pantallas
Smart Fan 5 cuenta con múltiples sensores de temperatura y cabezales de ventilador híbridos con FAN STOP
Centro de aplicaciones de GIGABYTE, uso simple y fácil
Diseño de resistencias anti-azufre

Especificación
Procesador
Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset
Intel H510 Express Chipset
Memoria
Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Gráficos Integrados
Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200 @ 60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200 @ 60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 30 Hz
Maximum shared memory of 512 MB
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN
Gigabit Ethernet Chip (1 Gbps/100 Mbps)
Puertos de Expansión
1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 3.0 standard.)
Interfaz de Almacenamiento
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support)
4 x SATA 6Gb/s connectors
USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Conectores Internos de E/S
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

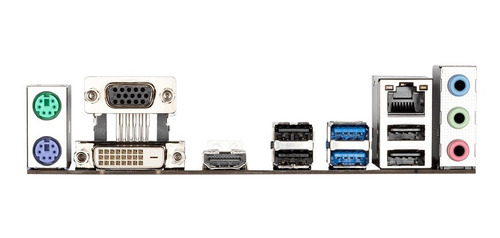

Conectores del Panel Trasero
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Controlador de E/S
iTE I/O Controller Chip
Monitorización H/W
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Características Únicas
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@ BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Software Incluido
Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Sistema Operativo
Support for Windows 10 64-bit
Diseño
Micro ATX Form Factor; 22.6cm x 18.5cm

****************************************************************
